FSM Sensor

The DPC can measure and generate pressure, so it can be used as a pressure measuring device, or as a testing and calibration device for pressure sensors and pressure switches. The built-in lithium-ion battery makes the DPC an ideal choice for mobile calibration operations. Therefore, there is no longer a need to disassemble the system for calibration, which accelerates the calibration process and minimizes related costs. The programmable pressure curve enables the automation of personalized calibration processes. In addition to providing extreme convenience, the DPC also features extremely low measurement uncertainty and excellent long-term stability.

FSM's PrimAtü 10 pressure transmitter detects the smallest differential pressures with the highest precision. The PrimAtü 10 offers the possibility of freely selectable pressure ranges and connection interfaces. This enables FSM to guarantee maximum flexibility to customers at an attractive price. Zero point and span deviations can be conveniently corrected at the touch of a button. All installation accessories for the pressure transmitter are included.
FSM's PrimAtü 10 can be mounted via DIN rail or screw connection. The lockable cover, spring-loaded clamps, and spacious clamping chamber make connecting the PrimAtü 10 particularly convenient.

The feel FDP differential pressure transmitter is ideal for accurately measuring the smallest differential pressures, and is used for filter monitoring, volumetric flow control, or room pressure monitoring. Featuring precision sensor components and high-resolution measurement electronics, it achieves an accuracy of ±0.2%. Users can adjust parameters such as measurement range, unit, or output signal according to on-site conditions via DIP switches, Bluetooth, or software. For applications with high requirements for long-term stability, the automatic zero adjustment option ensures measurement stability for many years. A high-resolution 2.8-inch TFT display is available as an option. For easy commissioning, it includes a snap-in frame and all installation accessories.

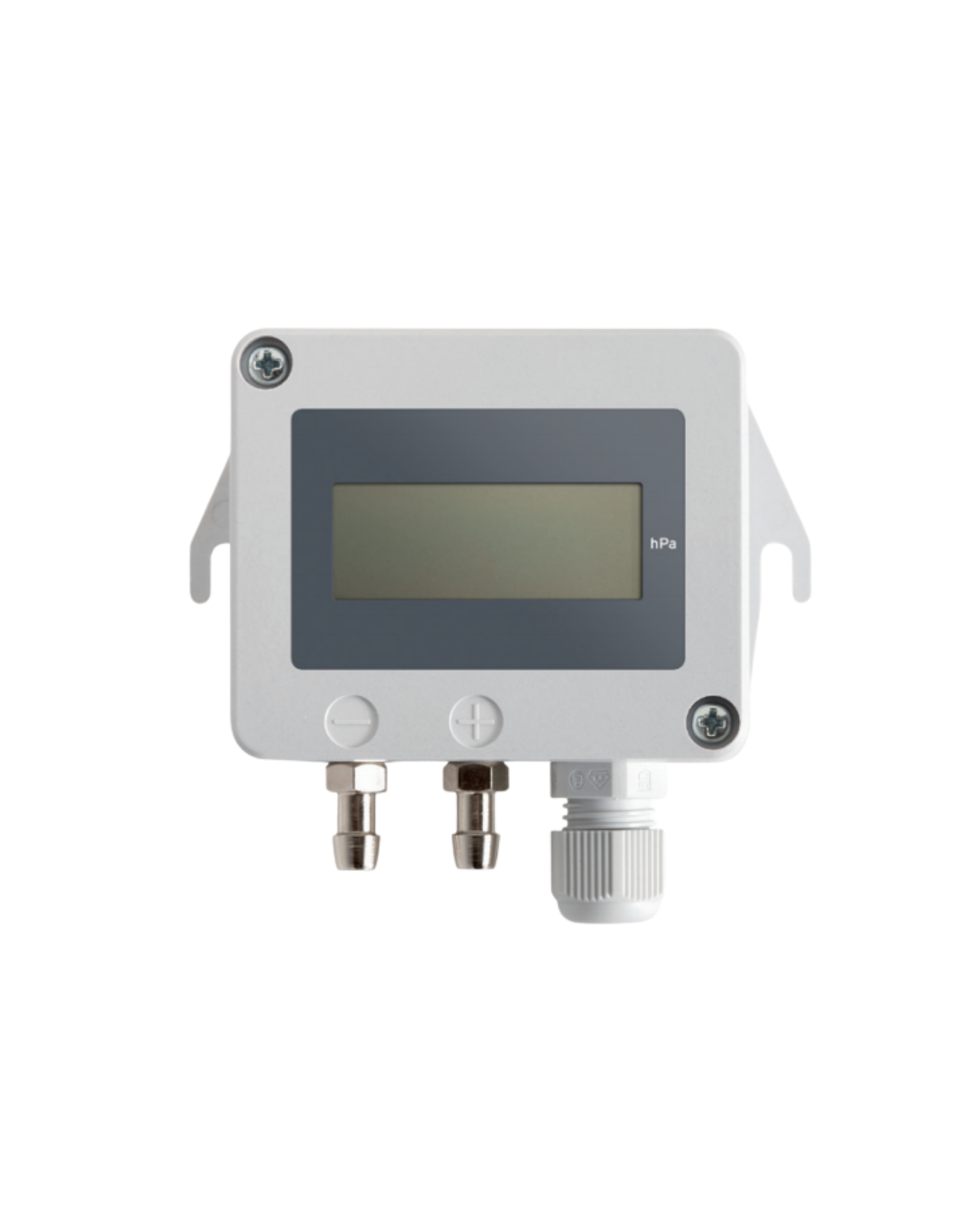

The DS01+ series microprocessor - controlled pressure transmitter is suitable for measuring the positive pressure, negative pressure, and differential pressure of non - corrosive gases. Pressure measurement is achieved through a piezoresistive semiconductor sensor. Depending on the model, the DS01+ can measure pressures from 2.5 hPa to 100 hPa. This pressure transmitter has two basic versions, and its measurement range can be switched among four intervals via DIP switches. The DS01+ not only provides users with maximum flexibility in terms of measurement range but also allows for easy adjustment of the output signal and time constant according to application requirements, without the need for complex re - debugging. Its lightweight and compact structure is a model of space optimization, especially suitable for low - pressure measurement in narrow spaces. The wear - free measurement system requires almost no maintenance. If the measured value needs to be corrected, the zero point and value can be easily adjusted. An LCD display can be optionally equipped and added through a simple plug - and - play system.
